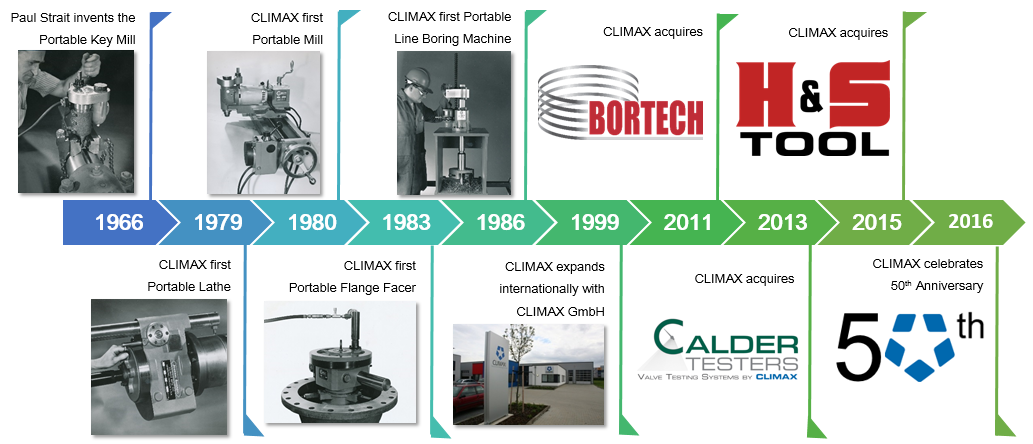

CLIMAX는 미국 회사로 1966년부터 Portable(이동식) 가공 장비를 생산하는 회사로 Portable 용접장비, 밸브테이터 회사를 인수 합병함으로
Portable 설비로는 최고의 전문성을 가치고 있는 회사입니다. Line Boring, Bore Welding, Flange Facing,
Circular Milling, Portable Milling, Portable Lathe, Heavy Duty Drills, Key Mills, End Prep Machines,
Tube Bevelers, Pipe Cutting, Valve Lapping & Grinding, Valve Testing, Portable Machine Tools,
On Site Machining, Custom Engineering, Manufacturing, Mining & Heavy Construction, Power Generation,
Ship Building & Repair 및 Oil & Gas 등의 전문 장비를 생산하고 있습니다.
1. Portable Flange Facer
Flange 표면을 가공하는 장비로 작업 환경에 맞게 휴대성이 편리하고, 다양한 형태의 Flange를 쉽고 빠르게 가공 가능합니다.
FF1000
FF3000
FF4000
FF5000
FF6300
FF7200
FF8200
Application for Flange Facer
• Re-facing of ship hatch sealing surfaces
• Re-machining of rotary crane bearing surfaces
• Re-facing of main steam inlet flanges
• Re-surfacing if large pump base housings
• Re-facing of valve flanges
• Heat exchange repair

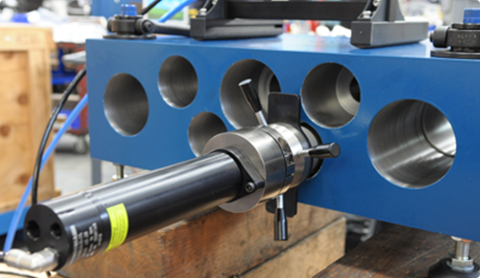

2. Portable Boring Machine
Climax 의 Boring Machine은 35에서 2030mm의 보링 직경을 지원하고 설치가 쉽고,
제한적인 공간에서 어려운 작업을 신속하게 처리하고, 옵션을 통해 Facing 작업도 한번에 가능하도록 설계되었습니다.
BB3000
BB4500
BB5000
BB5500 (Coupling)
BB6100
BB7100
BB8100
Application for Boring Machine
• Line boring of heavy construction equipment buckets and articulated joints
• Drag Line housing repair
• Line boring of dam wicket gate bushings
• Ship stern tube and rudder leaf boring
• Re-boring of turbine shell housings
• Turbine coupling boring
3. Portable Welding Machine
가공 및 용접을 위해 Auto Bore Welding System을 동일한 장착 시스템으로 수행 가능하여 시간 및 비용 절감에 많은 도움을 줍니다.
BW1000
BW3000
BW5000
Application for Welding Machine
• Welding for bore and flange
• Repair for valve

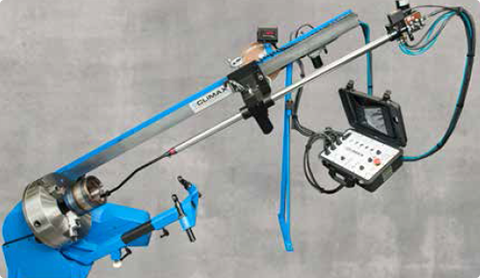

4. Portable Cladding Machine
AC5000
Application for Cladding Machine
• Applying the highest quality clad overlay
• Cladding on small diameter nozzles, cylinders and pipes
5. Portable Mills/Lathes
a. Key Mill
KM3000
KM4000
Application for Key Mill
• Milling of keyways in motor shafts
• Milling of stress relief slots in bridges
• Machining of pipe ID flats
b. Circular Mill & Milling Machine
대형 사이즈의 장비임에도 견고한 설계로 정밀한 가공이 가능하며 최대 10""(254mm) 밀링커터 사용으로 넓은 가공면도 짧은 시간에 가공이 가능합니다.
서보모터 제어 시스템으로 광범위한 속도 및 각도 제어를 통해 밀링커터 위치를 정밀하게 제어 가능합니다.
CM6200
PM4200
LM5200
LM6200
Application for CM & Milling Machine
• Milling of base plates for mounting pumps and motors
• Milling of platens of large die casting presses
• Machining of lock and dam gates
• Milling of vertical slides on steel rolling mills
c. Lathes
LM5200
LM6200
LM5200
Application for Lathes
• Repairing of yoke assemblies on ship rudder control devices
• Re-machining of rotor journal turbine shafts and fan shafts
• Re-turning of elevator motor shafts
• Re-machining of agitator journals
• Re-machining of gearing journals on large shafts

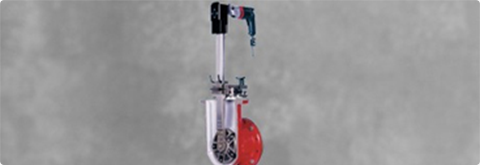

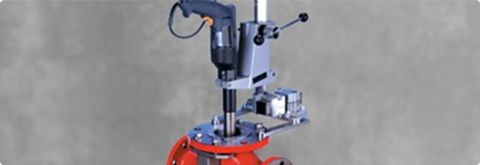

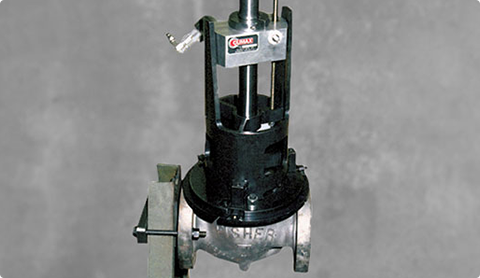

• Grinding and lapping of globe, check and gate valve seats
• Machining of ball valve seats
• On-site re-machining of seat and seal areas on Fisher and Dresser control valves
• In-place repair of safety valves
7. Special Custom-made Equipment

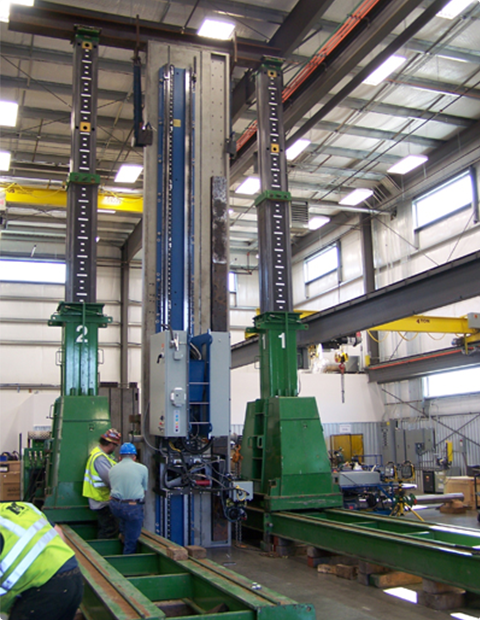

Army corps project markland lock repair machine
on mock up fixture

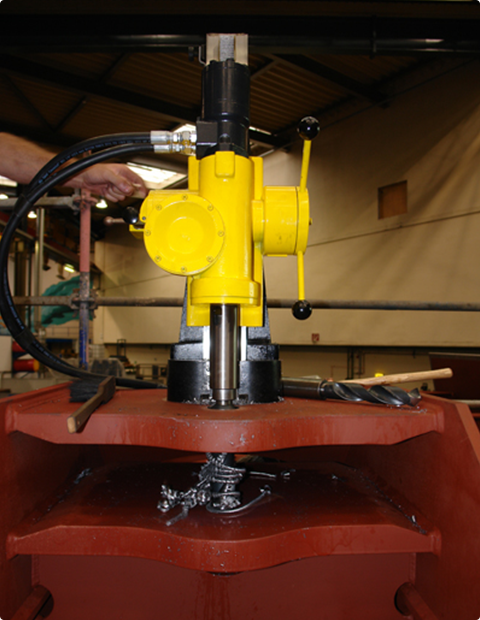

Lamina Magnetic Drill

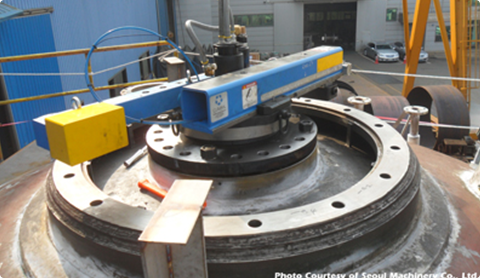

FF6200 seoul machinery watermark
Tubine coupling seat grinding
1975년에 설립된 H&S TOOL은 CLIMAX 자회사로써 Portable Tube & Pipe Cutting 및 Beveling 가공장비를 생산·공급하고 있습니다.
파이프 내, 외경 사이즈에 따라 튜브와 파이프 컷팅 및 베벨링 장비들이 구분되어 있으며, 20여종이 넘는 장비로
1/2”내경부터 72”외경 사이즈까지 광범위한 파이프나 튜브 직경에 맞게 장비를 선택할 수 있는 것이 특징입니다.
1. Flange Facers

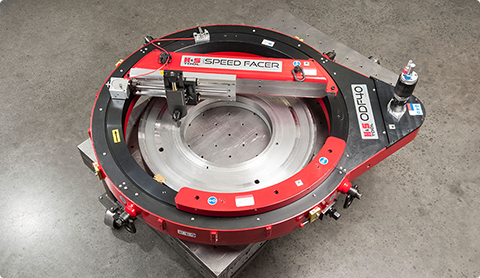

SPEED FACER ODF 30 – 70

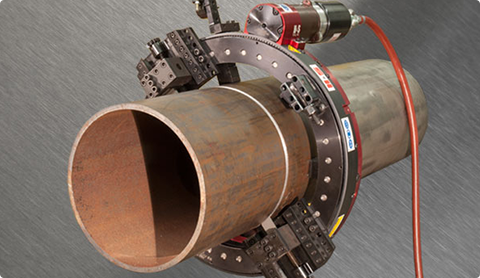

2. OD Mount Split frame Machines
Split-Frame O.D. Mount Machines
3. Pipe Bevelers, ID Mount

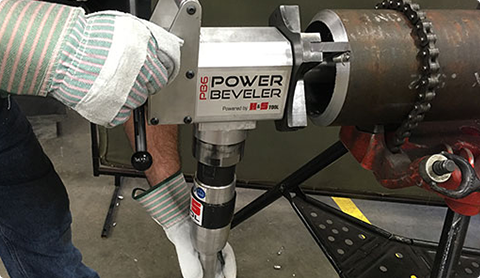

Power Beveler (PB 6 – 12)
4. Rolling Equipment

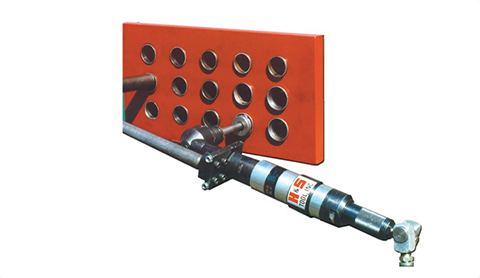

Tube Rolling & Expanding Equipment

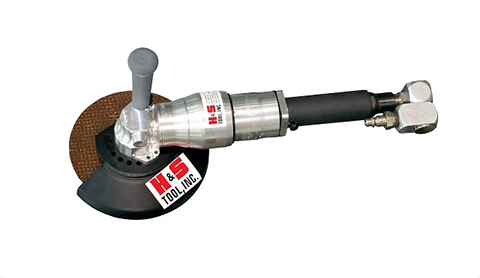

5. Saws
Model CHS

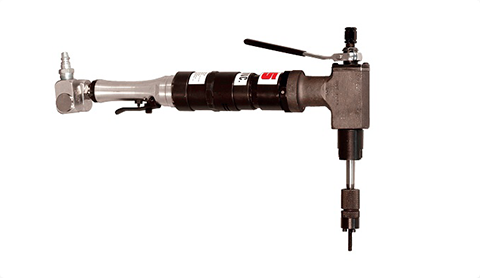

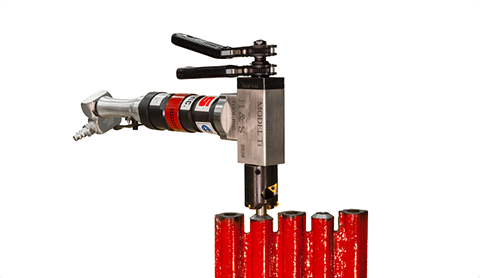

6. Tube Bevelers, ID/OD Mount
Model J Tube Beveler
7. I.D. Mount Special Machining

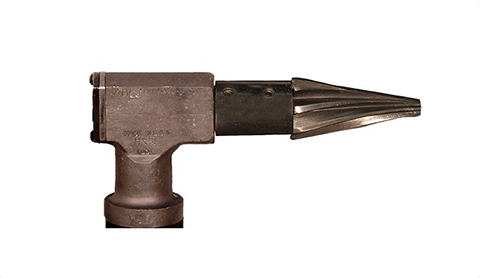

I.D. Bevel Reamer
8. MULTIPREP
I.D. Bevel Reamer

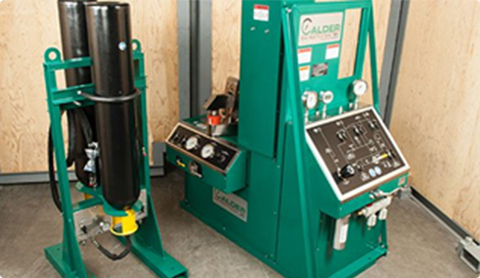

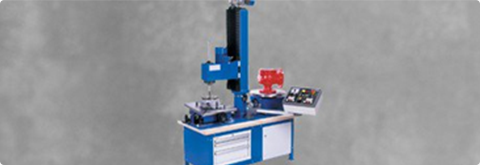

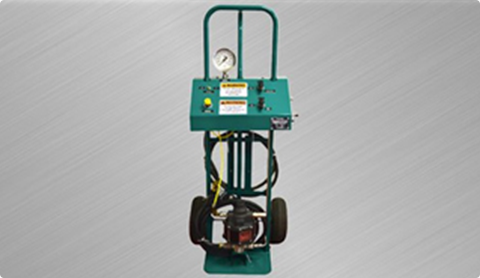

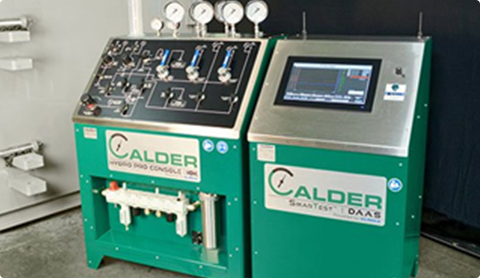

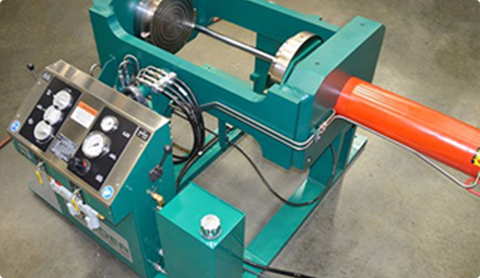

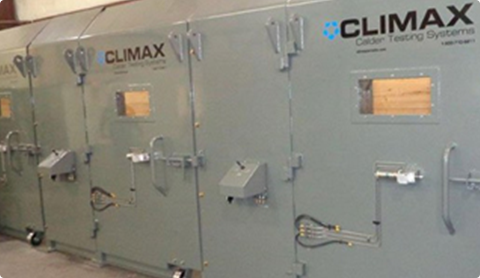

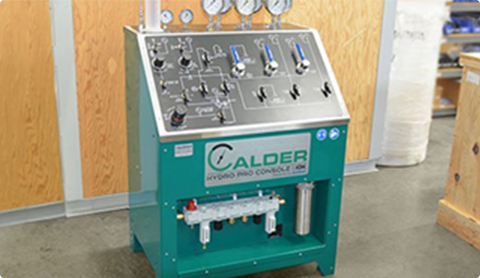

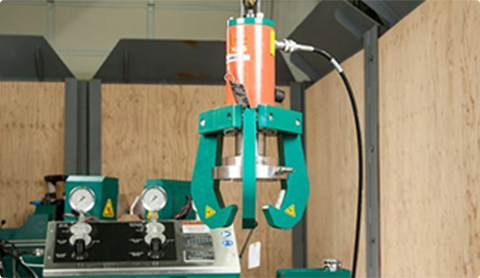

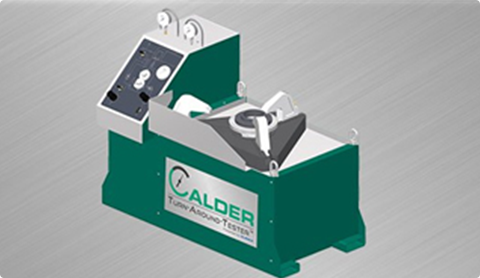

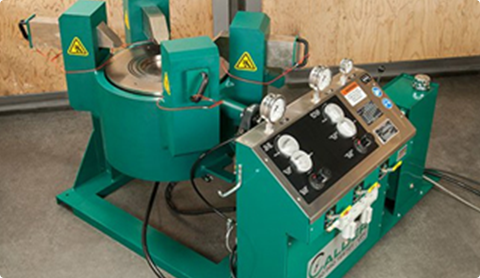

세계 최고 수준의 유압 & 공압 밸브 테스트 장비이며, 최고의 품질, 안전성, 내구성, 뛰어난 성능 및 신속한 고객지원을 통해 세계 각지에 제품을 공급하고 있습니다.
CALDER 밸브 테스트 장비를 통해 효과적인 비용절감과 투자대비 뛰어난 가성비를 누려보시기 바랍니다. 또한, 아래에 표기된 모든 밸브의 테스트가 가능합니다.
• Gate, Globe, Check, Plug, Ball, Needle, Butterfly, Control, Safety Relief and Special Valve
• Flanged Valve, Socket Weld Valve, Butt Welded Valve, Female Threaded Valve and Special Ended Valves
